Description
Better than ever.
The popular pedal set returns with an overhauled load cell brake, Hall sensors on throttle and clutch, and many refinements to the design.
Magnetic sensors.
Both the throttle and brake axes use precision Hall-effect sensors. By measuring pedal position with magnets, the system is contactless, meaning no wear on the sensors and consistent performance.
Solid, full-metal design.
Brake with confidence.
Full metal construction with cutting-edge features, just like the ClubSport Pedals V3 and its predecessors.
Muscle memory.
The load cell sensor measures pressure rather than position. Tuned to a genuine 90 kg (adjustable) at the pedal plate, this realistic level of resistance trains your muscle memory and you’ll brake with confidence and precision every time.
Dual-stage brake action.
The adjustable, tool-free elastomer stack incorporates a coil spring to simulate the initial movement of the brake pad to the disc. You can easily adjust the firmness of the pedal travel by selecting between elastomer springs (included).
Features
- High-performance three-pedal set (clutch, brake, throttle)
- Contactless Hall sensors on both clutch and throttle for high precision and durability
- All-new load cell brake system
- Up to 90 kg measured foot force on pedal plate (load cell sensor rated >200 kg)
- Load cell sensitivity (approx. 10 kg minimum) adjustable via Tuning Menu (or Fanatec Control Panel on PC)*
- Elastomer stack combined with load cell sensor creates a realistic braking feel
- Elastomer springs with 65, 75, and 85 Shore hardness included (tool-free adjustment)
- ‘Dual-stage’ preload feeling with metal spring and elastomer
- Alternative metal spring also included for stiffer preload
- Pedal arms, faces, and heel rest made from cast and machined aluminium with durable power-coated finish
- Fully assembled out of the box, plug and play
- Easily configurable as a two-pedal set
- Pedal position can be adjusted sideways along heel rest
- Pedals can be individually mounted without heel rest, inverted mounting possible (hardware not included)
- Detachable rubber pedal covers
- Revised structure on all pedals for greater durability
- Improved access to hard-mounting points
- Dedicated handbrake port
- RJ12 or USB connection
- Connect directly to all compatible Fanatec Wheel Bases via RJ12 (recommended)
- Use as a standalone USB input device (PC only)
Compatibility
Peripherals
Compatible with:
- All CSL Elite Wheel Bases
- CSL DD Wheel Base
- Gran Turismo DD Pro Wheel Base
- All ClubSport Wheel Bases
- All Podium Wheel Bases
- ClubSport Handbrake
Platforms
- PC: This product can be used on Windows PC via RJ12 on all compatible Fanatec Wheel Bases, or as a standalone input device via USB.
- PlayStation: This product can be used on PlayStation 4 and PlayStation 5 consoles, if connected to a PlayStation-licensed Fanatec Wheel Base.
- Xbox: This product can be used on Xbox One and Series X|S consoles, if connected to a compatible Fanatec Wheel Base combined with an Xbox-licensed Fanatec Steering Wheel.
Tech Specs
Product Series
CSL
Weight Unit of Measurement
KG
Platform
PC, PlayStation Ready, Xbox Ready
Weight
4.5
What’s Included
- CSL Elite Pedals V2 (three-pedal set, fully assembled)
- Alternative elastomers and metal spring for brake tuning
- 2x Brake pedal assembly helper
- 1x Wheel Base connection cable RJ12/RJ12 (~3 m)
- 1x USB cable (~3 m)
- 2x Wrench (13 mm)
- 1x Allen key (6 mm)
- 1x Allen key (4 mm)
- 1x Quick Guide
- 1x Sticker Set
Special Notes

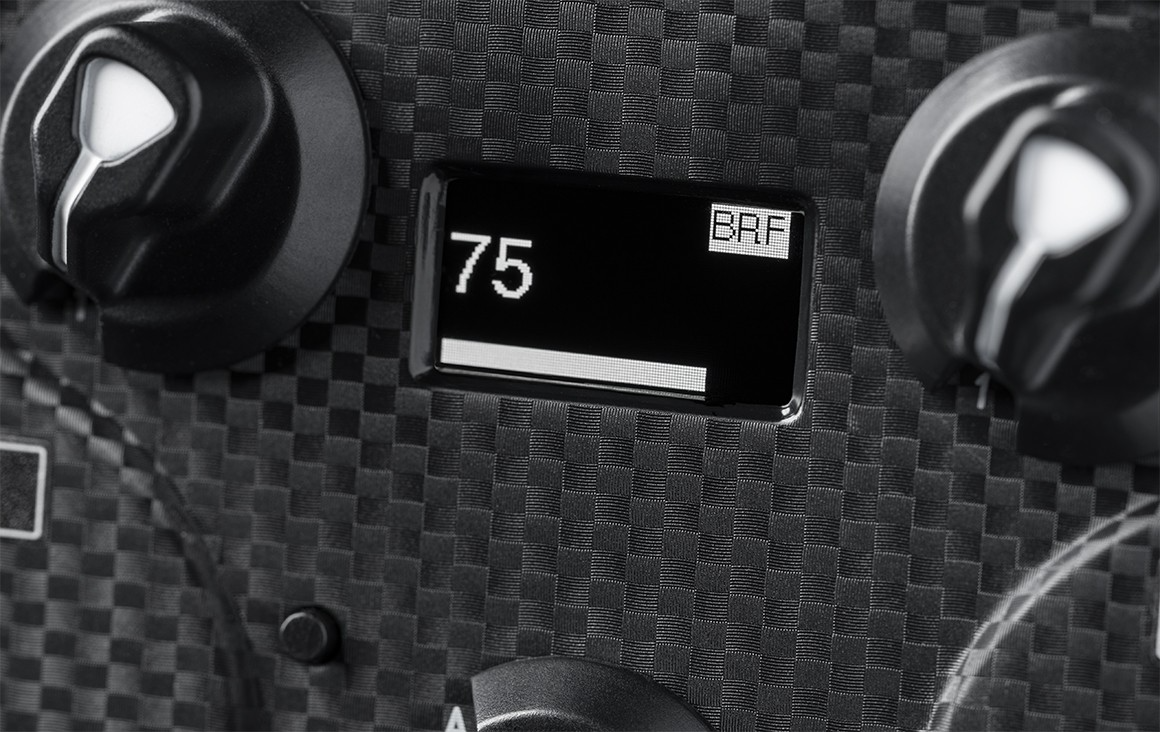

- *When connected via RJ12 directly to the wheel base, brake sensitivity is adjusted using the BRF setting in the Tuning Menu, accessed by supported Fanatec steering wheels.
- Bolts for hard-mounting the pedals are not included, because the required bolt length differs depending on the thickness of the mounting plate or type of mounting solution. See product manual and drilling template for more information.
